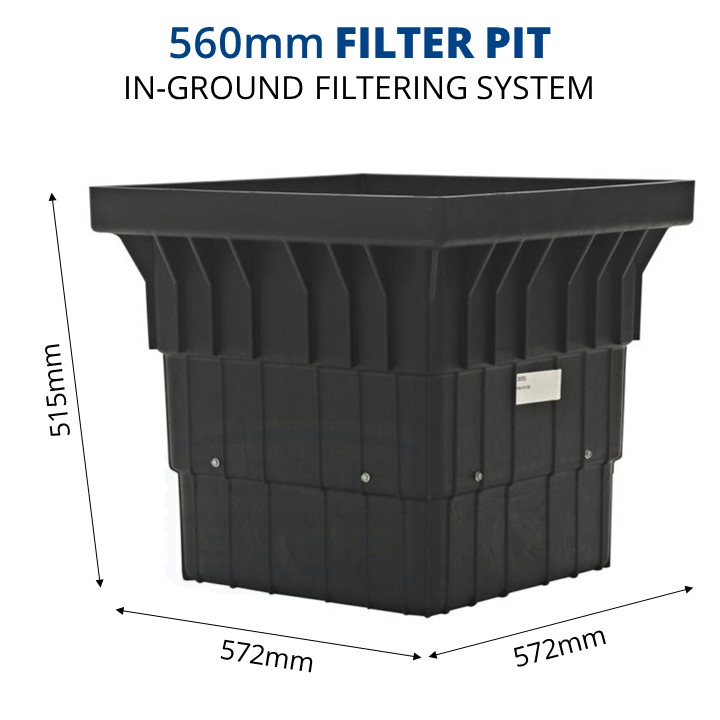

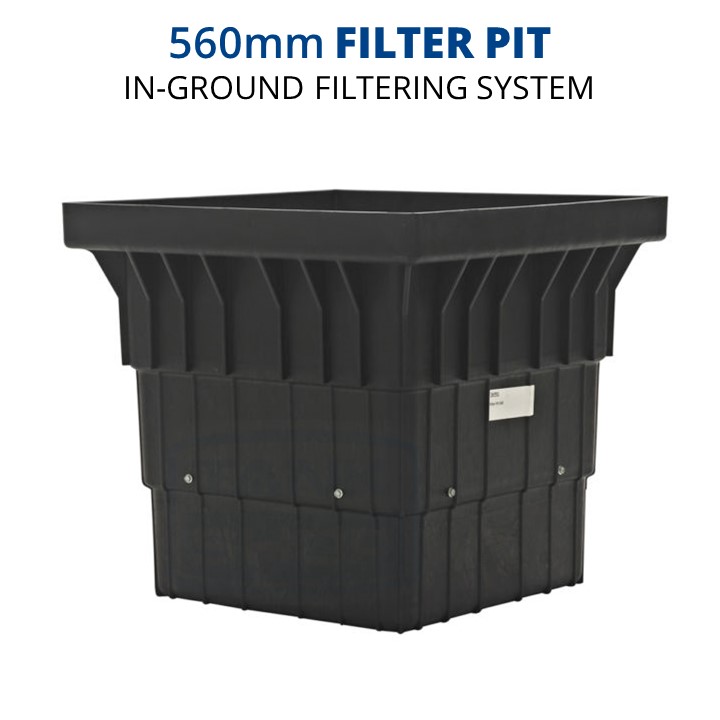

An in-ground filtering system, screening leaves and debris out of your pipes.
Rain Harvesting’s 560mm Filter Pit (TAFP01) handles large volumes of rainwater and enable screening to be done at a central point in the system. In some cases they can be safer and easier to clean than rain heads fitted at roof gutters.
Filter Pits are extremely beneficial when used in conjunction with underground tanks or where tanks are placed downhill from the building. They are usually placed at a convenient spot in the garden, between the tank and the house. Filter Pits are a ‘junction’ where the various pipes from around the house meet from which the main pipe or pipes then connect to the rainwater tank.
Features and Benefits
- Convenient location for cleaning
- Beneficial when used in conjunction with underground tanks or where tanks are placed down hill from the building
- Suits a variety of outlets to the tank – pipes can be 75mm up to 150mm diameter and can be in multiples to take the flow
- Compact and easy to maintain
- Includes a stainless steel mosquito proof screen (0.955mm aperture) and lid

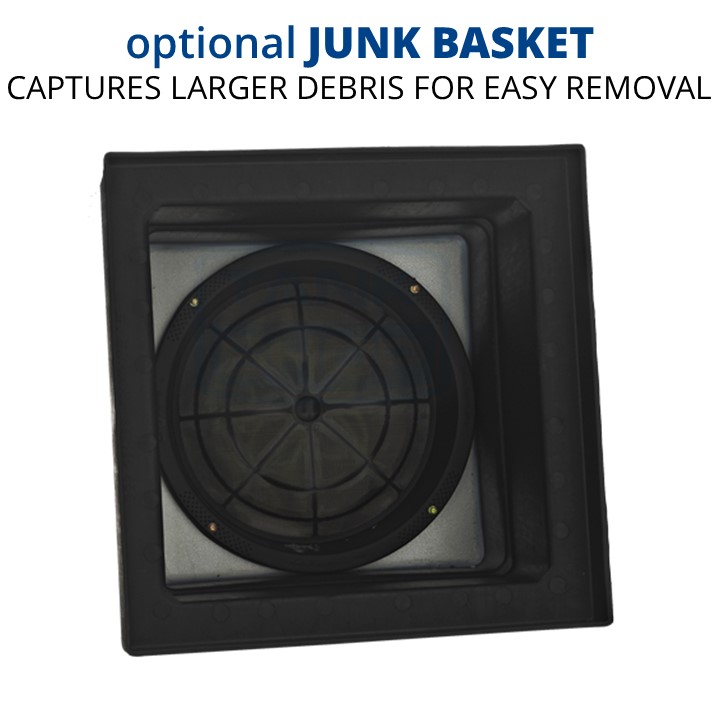

- Optional junk basket for larger debris removal which incorporates a 6mm aperture stainless steel screen

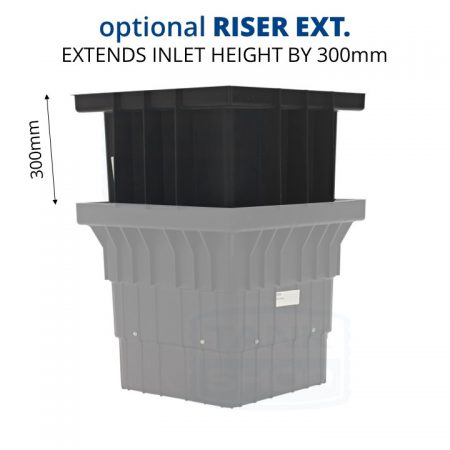

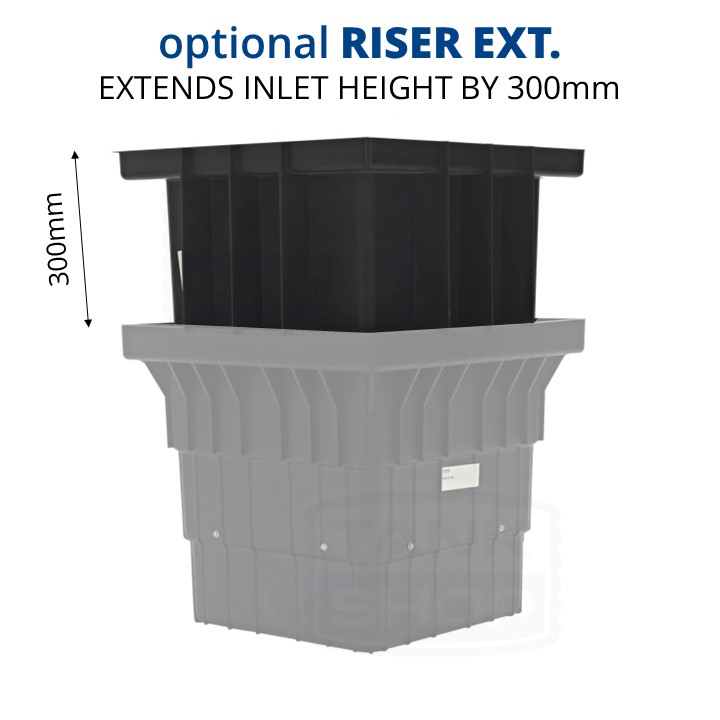

- Optional height extensions are available to increase the height of the top of the filter pit to ground level
